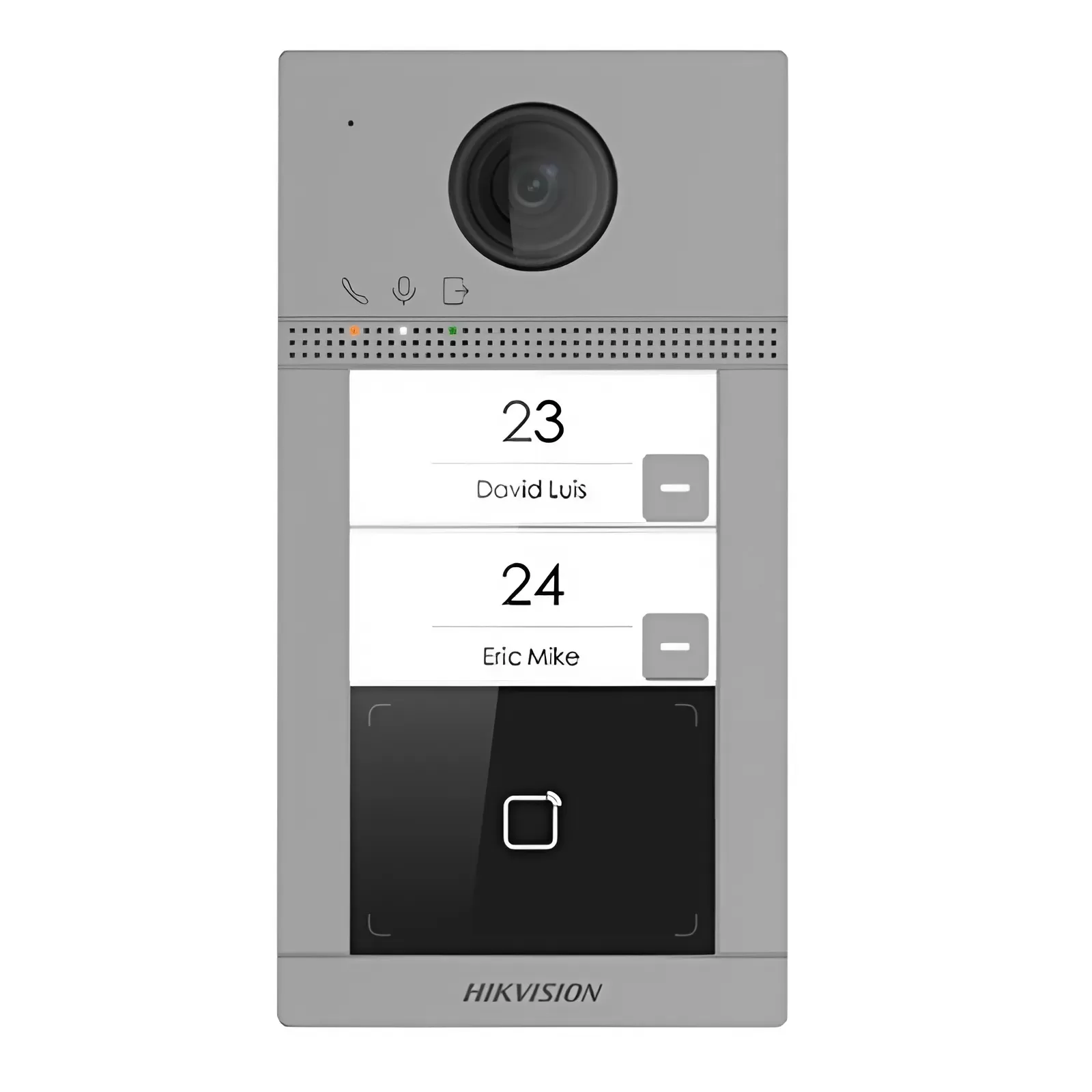

Nút Bấm IP HIKVISION DS-KV8213-WME1 là thiết bị 2 cổng cho villa thiết kế sang trọng, vỏ hợp kim nhôm, có Wifi là camera chuông cửa với nút bấm thiết kế cho villa và nhiều tính năng thông minh.
Thông số kỹ thuật
| Model | DS-KV8213-WME1(B) |
| System parameters | |
| Operation system | Embedded Linux operation system |
| Operation method | Two-button |
| Flash | 32 M |
| RAM | 256 M |
| Video Parameters | |
| Camera | 2MP HD camera |
| Night vision | Low illumination IR supplement mode:3 m |
| BLC | Support |
| DNR | Support |
| WDR | True WDR |
| Field of view | Horizontal: 129° Vertical: 75° |
| Video compression standard | H.264 |
| Stream | Main stream: 1080p@30fps, 720p@25fps |
| Sub stream: D1@25fps | |
| Resolution | Main stream: 1920 × 1080p, 720p |
| Sub stream: 704 × 576 | |
| Motion detection | Support |
| Anti-flicker frequency | 50Hz, 60Hz |
| Audio parameters | |
| Audio intercom | Two-way audio communication |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
| Audio compression standard | G.711 U |
| Audio compression Rate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Network parameters | |
| Wired network | 10/100 Mbps Ethernet |
| Network protocol | TCP/IP, RSTP |
| Access control parameters | |
| Reading frequency | 13.56 MHz |
| Card type | Mifare card |
| Interfaces | |
| RS-485 | 1 |
| Wi-Fi | 2.4G Wi-Fi |
| Debugging port | 1 |
| Door contact input | 2 |
| Exit button input | 2 |
| Grounding | 1 |
| Physical button | 2 |
| TAMPER switch | 1 |
| Door control | 2, breakdown voltage: 36 V |
| Performances | |
| Card capacity | Max. 10000 |
| User capacity | Max. 2000 |
| Linked Indoor station | Max. 4 |
| Linked sub door station | Max. 16 |
| Linked doorphone | Max. 8 |
| Protocol | ISAPI, RTSP, STMP, SNMP |
| Unlock door | Unlock by presenting cards, unlock via Client Software, unlock via App, unlock via indoor station |
| General | |
| Protection level | IP65, IK08 |
| Indicator | 3 |
| Power supply | IEEE802.3af, standard PoE 12 VDC |
| Power consumption | ＜ 10 W |
| Working temperature | -40° C to 53° C(-40° F to 127.4° F) |
| Working humidity | 10% to 95% |
| Installation | Surface mounting/ Flush mounting |
| Dimension | 174 mm × 91 mm × 29 mm |
